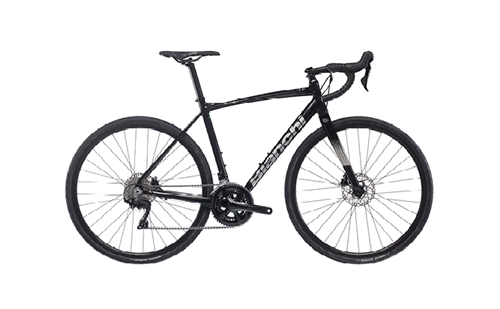

The address of Edoardo Bianchi's first workshop in Milan was 7 Via Nirone. This is a responsive and rigid frame in triple-butted 6061-series aluminum throughout with hydroformed sections to ensure the highest standards of design and performance.
- SIZES
- 470 500 530 550 570 590 610
- FRAME
- VIA NIRONE 7 ALL ROAD ALLOY, TC18, HYDROFORMING TUBING, INTERNAL CABLE, SEATPOST: 31.6MM, FLAT MOUNT DISC BRAKE, THRU AXLE 12X142MM, 40MM TIRE CLEARANCE, RACK & FENDER EYELETS, DOWNTUBE UNDERSIDE BOTTLE CAGE BOSSES, SIZES 47-50-53-55-57-59-61-63CM
- FORK
- CARBON 1"1/8, FLAT MOUNT, DISC BRAKE, THRU AXLE 12X100MM
- HEADSET
- FSA NO.8B/ZS4D
- SHIFTERS
- SHIMANO 105 ST-R7020 11SP
- REAR DERAILLEUR
- SHIMANO 105 RD-R7000 GS 11SP
- FRONT DERAILLEUR
- SHIMANO 105 FD-R7000-L
- CRANKSET
- SHIMANO FC-RS510 50X34T, CRANK LENGTH: 170MM-44/53CM, 172.5MM-55/59CM, 175MM-60/63CM
- BB
- INCLUDED IN THE CRANKSET
- CHAIN
- KMC X11-1 EPT FINISH, 11SP
- SPROCKET
- SHIMANO 105 11SP 11-34T
- BRAKES
- SHIMANO BR-RX400
- BRAKE LEVERS
- INCLUDED W/SHIFTERS
- WHEELS
- VELOMANN GD24 DISC 700C 622-21, PROFILE 24MM
- REAR HUB
- FORMULA - RXC-142S ROAD DISC , CENTER LOCK, J-BEND, THRU AXLE 12XX142MM
- FRONT HUB
- FORMULA - CL-712 ROAD DISC , ALLOY 32H, THRU AXLE 12X100MM
- TIRE
- VITTORIA ZAFFIRO V 32-622
- STEM
- VELOMANN ST182A, ALLOY 6061, RAISE +/ - 7, HEIGHT 38MM, OVERSIZE, 1 1/8", EXT: 70MM-47CM, 90MM-50/53CM, 100MM-55CM,110MM-57/59CM, 120MM-61/63CM
- HANDLEBAR
- VELOMANN RA35A COMPACT, FLAT TOP, ALLOY 6061 DIAM. 31,8MM, REACH 80MM, DROP 130MM, SIZE: 400MM-44/53CM, 420MM-55/59CM, 440MM-61CM
- GRIPS
- CORK W/BIANCHI LOGO
- SADDLE
- VELOMANN 2302HRN, LENGHT/WIDE 280X145MM
- ROTOR
- SHIMANO SM-RT64 ROTOR FOR DISC BRAKE CENTER LOCK , S 160MM
|
|
|
 |
|
 |
|
|
|
