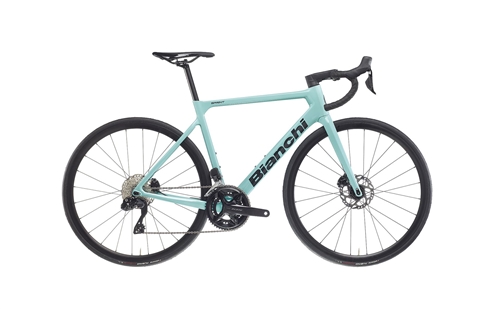

The Sprint is worthy of inclusion in Bianchis Racing category, created for those starting out on their journey in competition. No compromise has been made on the Sprints appearance: its a sharply-styled, beautiful road carbon bike. Considerations have been made throughout the design to ensure sleekness, clean lines and a racy, aggressive character.
- SIZES
- Frame
- Sprint carbon monocoque, mechanical/electronic, BB-PressFit 86,5x41, head tube 1.4"-1.5", integrated seat clamp, full carbon dropout, Disc brake flat mount, thru axle 12 x 142 sizes 47-50-53-55-57-59-61cm
- Fork
- Full Carbon Aero Road 1.4">1.5" integrated head , Disc brake flat mount, thru axle 12x100
- Headset
- ACROS & FSA, for internal cable routing
- Drivetrain
- Shifters
- Shimano 105 Di2, RD-R7150 12-speed
- Rear Derailleur
- Shimano, RD-R7150, 105 Di2 12-speed
- Front Derailleur
- Shimano 105 Di2, FD-R7150 12-speed
- Crankset
- Shimano 105 12sp, FC-R7100, for rear 12- speed, Crank Length: 170mm-47/53cm, 172.5mm-55/59cm, 175mm-61cm
- Bottom Bracket
- Shimano, SM-BB72-41B, press fit for road
- Chain
- Shimano 12sp, CN-M7100
- Brakes
- Brakes
- Shimano, BR-R7170 Hydraulic disc brake, included in the shifter
- Rotor
- Shimano rotor for disc brake center lock, SM-RT70, 160mm
- Wheels
- Wheels
- Velomann alloy, disc brake, 30mm rim profile, hub team TC j-bend, spoke round 2mm black color, clincher 622x19C, w/rim tape, front HH12 - rear HH12/142
- Tire
- Vittoria Rubino IV G2.0 graphene, 700x25, 60TPI
- Cockpit
- Stem
- Velomann, Alloy 6061, raise - 7 Ext: 80mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm
- Handlebar
- Velomann Compact, alloy 6061, diam. 31,8mm, reach 80mm, drop 130mm Size: 400mm-44/53cm,420mm-55/59cm,440mm-61cm
- Grips
- Bianchi cork, black
- Saddle
- Seatpost
- Velomann alloy 6061, 15mm offset, 27,2mm; Length: 300mm-44cm ; 350mm-47/61cm
- Saddle
- Velomann Seta
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- The carbon monocoque frame is constructed around a racing-specific geometry, providing an aggressive platform from which to chase down attacks, launch breakaways and sprint for mid-race primes.
|
|
|
|
|
|
|
|
|
