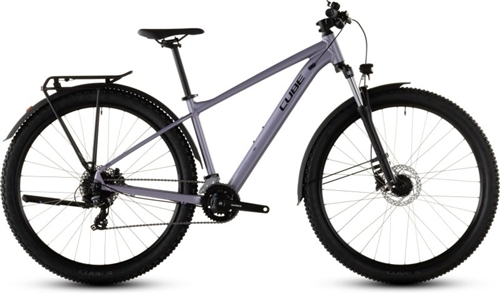

Whether it's the daily commute or a weekend off-road adventure, the Aim ONE FE has it covered. With a full complement of mudguards, luggage rack, lighting system and kickstand, you're all set for tackling the mean city streets in style and comfort. Come the weekend, grippy off-road 2.25in tyres with a 100mm suspension fork and wide-ranging Shimano 2x8 gears give you the tools you need to explore wherever your curiosity leads you. And, whether you ride on road or off, powerful Shimano hydraulic disc brakes ensure you're always in full control, no matter the weather.
- General
- Model code
- 140170
- Model year
- 2026
- Colour
- LIGHTPURPLE/CHROME
- Weight (kg)
- 17.3
- EAN
- 4054571505989
- Frame
- Frame
- Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
- Fork
- SR Suntour XCE, 100mm
- Drivertrain and brakes
- Front brake
- Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
- Rear brake
- Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
- Rear derailleur
- Shimano RD-TX800, 8-Speed
- Front derailleur
- Shimano FD-M315, Top Swing, 31.8mm Clamp
- Shifters
- Shimano SL-M315, Rapidfire-Plus
- Crankset
- Shimano FC-M315, 36x22T, 170mm
- Cassette
- Shimano CS-HG200, 12-32T
- Chain
- KMC Z8.3
- Groupset
- Shimano Tourney
- Cockpit
- Headset
- Cube FPH863, Semi-Integrated
- Handlebar
- Cube Rise Trail Bar, 680mm
- Stem
- Cube Performance Stem, 31.8mm
- Handlebar tape/Grips
- Acid Icon
- Wheels
- Rims
- Acid EX25, 32H, Disc, Tubeless Ready
- Front hub
- Shimano DH-3D32, Hub Dynamo, QR
- Rear hub
- Acid Pro, QR, 6-Bolt
- Front tyre
- Cube MTB, 2.25
- Rear tyre
- Cube MTB, 2.25
- Other parts
- Saddle
- Acid Venec Lite
- Seatpost
- Cube Performance Post, 27.2mm
- Seatpost clamp
- Cube Seatpost clamp
- Pedals
- Cube PP MTB
- Front light
- Cube Shiny 50
- Rear light
- Acid Mudguard Rear Light PRO-D, 6V, AC
- Standard
- Acid FM Pure Kickstand
- Mudguards
- Acid 65
- Bell
- Acid Bell
- Carrier
- Acid Semi-Integrated Carrier, RILink Adapter Compatible and Rail
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- With the Aim FE we're redefining versatility. The included full-length mudguards, luggage carrier and lighting system mean it has everything you need right out of the box. There's a threaded bottom bracket and Internal Cable Routing, and the flat disc mount integrates seamlessly with the included kickstand. Carefully thought-out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim FE that fits perfectly.
