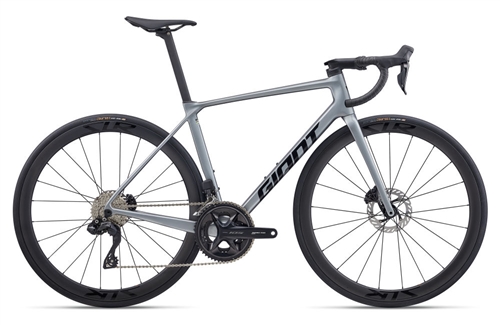

The TCR Advanced Pro Disc gives you the lightweight performance to score the KOM plus the confidence to push your limits on technical descents. Engineered with an Advanced-grade composite frame featuring flat-mount disc-brake integration front and rear, it’s a versatile race machine for all types of road conditions. With its proven Compact Road geometry and OverDrive 2 front end, it has the best stiffness-to-weight ratio of any road bike in its class. Add in the efficiency and compliance of its Variant seatpost, and you get race-tuned road performance that can’t be beat.
- SizesS, M, M/L, L, XL
- ColoursGloss Dark Iridescent/Chrome
- FrameAdvanced-grade composite, disc
- ForkAdvanced-grade composite, full-composite OverDrive 2 steerer, disc
- ShockN/A
- HandlebarGiant Contact SL S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
- GripsStratus Lite 2.0
- StemGiant Contact SL S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
- SeatpostGiant Variant, composite, -5/+15mm offset
- SaddleGiant Fleet SL
- PedalsN/A
- ShiftersShimano 105 Di2 2x12
- Front DerailleurShimano 105 Di2
- Rear DerailleurShimano 105 Di2
- BrakesShimano 105 Di2 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
- Brake LeversShimano 105 Di2
- CassetteShimano 105, 36/52 with Giant Power Pro power meter S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- ChainKMC X12
- CranksetShimano 105, 34/50 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- Bottom BracketShimano, press fit
- RimsGiant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
- Hubs[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
- SpokesSapim CX-Ray
- TyresGiant Gavia Course 1, tubeless, 700x25c (28mm), folding
- Extrascomputer mount, factory tubeless set up, 32mm max tyre size
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Class-leading efficiency
- With an outstanding stiffness-to-weight ratio and updated aero tube shaping, this frameset is engineered to give road racers and riders superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.
- Advanced aerodynamics
- This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles. The result is a TCR that’s faster than ever in sprints and solo situations.
- Total control
- Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up 32mm.
|
|
|
|
|
|
|
|
|
