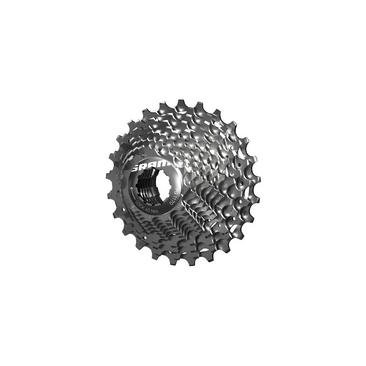

The PG 1170 cassette offersgearing options needed for challenging climbs, fast descents, sprints, and everything in between.
- Technology Highlight(s)
- Semi-spidered steel cogs, WiFLi, PowerGlide
- Weight
- 247g (11-26) , 257g (11-28) , 300g (11-32), 366g (11-36)
- Material
- Heat treated steel cog cluster, Aluminum spider (3 cogs)
- Gear Ratios
- 11-25: 11,12,13,14,15,16,17,19,21,23,25, 11-26: 11,12,13,14,15,16,17,19,21,23,26 , 11-28: 11,12,13,14,15,16,17,19,22,25,28, 11-32: 11,12,13,14,15,17,19,22,25,28,32, 11-36: 11,12,13,15,17,19,22,25,28,32,36
- Speeds
- 11
- Colors
- Blast silver, Zephyr silver anodized finish with laser-etched logos (11-36)
- Recommended Chain
- SRAM PC 1170 chain
- Sprockets on Spider
- 3
- Lock Ring Material
- Aluminum
- Sprocket Material
- Steel/ aluminum
- Recommended Group
- SRAM Force 1, SRAM Force 22, SRAM RED 22
- Compatibility
- SRAM Force 1, SRAM Force 22, SRAM RED 22, 11-36 Only use with medium and long cage SRAM road rear deraillerus with X-Horizon
- 11-36 optionis onlycompatible with the Force 1 medium cage rear derailleur featuring X-HORIZON straight parallelogram shifting. This 11-36 option also offers 13% lower gearing with its 36t cog against the 32t cog on the11-32 option
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Cassette design for high shifting performance with a quieter chain/cassette combination.
- Semi-spidered design: light, strong, efficient.
- 16T cog (except for WiFLi: 14T)
- 231g (11-25)
|
|
|
|
|
|
|
|
|
