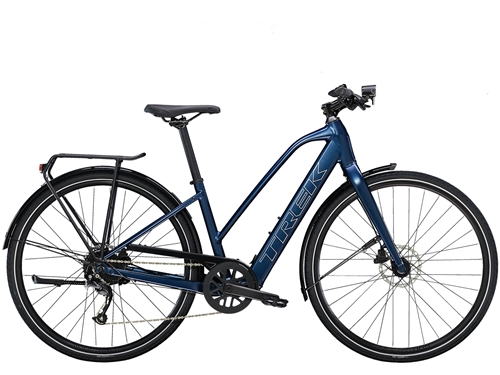

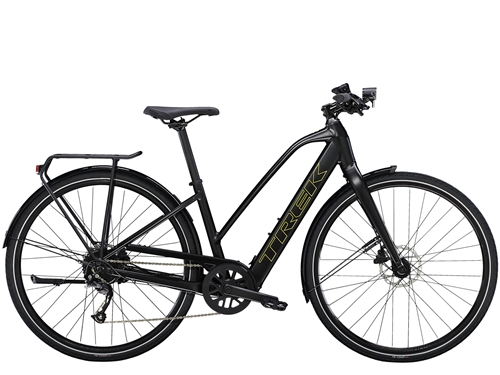

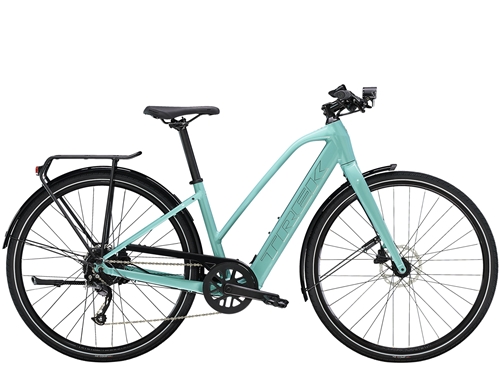

The FX+ 2 Stagger is a lightweight city electric bike thats designed to make everyday excursions faster and more fun. It has an intuitive and natural feeling pedal-assist system that makes exploring your city extra exciting and cruising up hills a breeze. Useful accessories like a rack and mudguards add even more versatility to this bike.
- Size: S, M, L
- Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, flat-mount disc, kickstand mount, 144.5 mm OLD hub motor spacing
- Size: XL
- Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, post mount disc, kickstand mount, 144.5 mm OLD hub motor spacing
- Fork FX+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer
- Wheels
- expand_less
- Hub front Formula DC-20, alloy, 6-bolt, 5x100 mm QR
- Hub rear G2 hub drive motor
- Rim Bontrager Connection, double-wall, 36-hole, 20 mm width, Presta valve
- Tyre Bontrager H2 Comp, reflective strip, wire bead, 30tpi, 700x40c
- Max tyre size 50c without mudguards, 45c with mudguards
- Drivetrain
- expand_less
- Shifter Shimano Altus M2010, 9-speed
- Rear derailleur Shimano Altus M2000, long cage
- *Crank Size: S, M
- ProWheel Pro alloy, 42T narrow-wide steel ring, 170 mm length
- Size: L, XL
- ProWheel Pro alloy, 42T narrow-wide steel ring, 175 mm length
- Bottom bracket Torque sensor, T47 threaded, 122.5 mm spindle
- Cassette Shimano HG200, 11-36, 9-speed
- Chain KMC E9S, 9-speed
- Pedal VPE-857
- Max. chainring size 42T
- Components
- expand_less
- Saddle Bontrager Sport Women's
- *Seatpost Size: S, M
- Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
- Size: L, XL
- Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
- *Handlebar Size: S, M, L
- Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width
- Size: XL
- Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width
- Grips Bontrager XR Endurance Comp, lock-on
- *Stem Size: S, M, L
- Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length
- Size: XL
- Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length
- Brake rotor Shimano RT26, 6-bolt,160 mm
- Brake Set Promax DSK-927 hydraulic disc, flat mount, 160 mm rotor
- Rotor size Max brake rotor size: 160 mm
- Accessories
- expand_less
- Battery 250 Wh
- Charger 2A, 42V output, 100V240V AC input
- Controller Bluetooth display
- *Light Size: S, M, L, XL
- Herrmans MR4, 120-lumen LED
- Size: S, M, L, XL
- Spanninga Solo
- Kickstand Pletscher Comp 18
- Mudguard SKS plastic
- Weight
- expand_less
- Weight M - 17.82 kg / 39.29 lbs
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- This is our lightest city e-bike, making it easier to manoeuvre while parking and less of a pain to carry up stairs
- The pedal-assist system has a hub motor for a more natural ride feel and a simple LED remote that indicates your assist setting

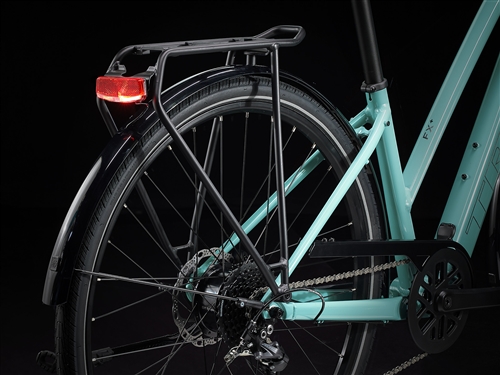

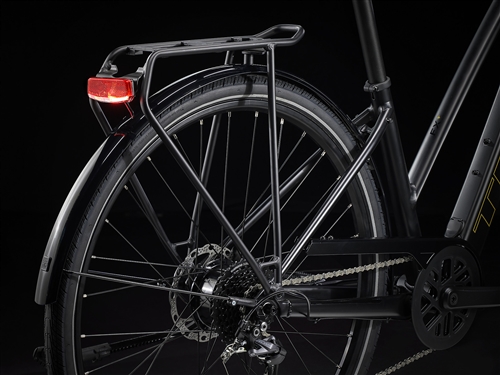

- It really is ready to roll, with included accessories like mudguards, lights and a MIK-compatible rear rack
- Double your range with a 250 Wh plug-and-play Range Extender battery that uses water bottle mounts to attach to your frame
|
|
|
|
|
|
|
|
|
