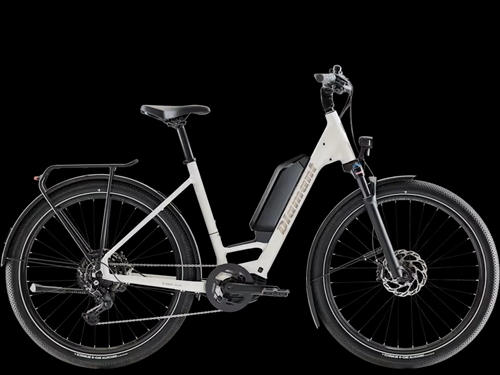

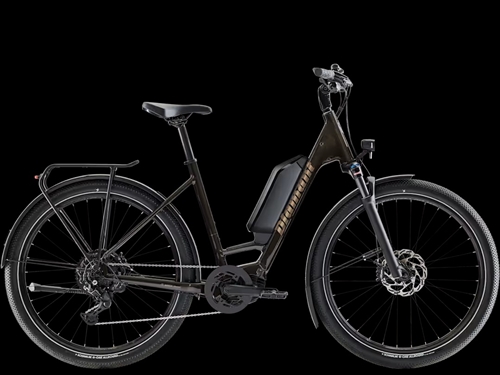

Zing Trip Core.II 800 adds extended range to the lightweight, practical trekking® platform. The 800Wh Bosch PowerPack gives you more miles between charges, while 4-piston Magura brakes add confident stopping power. With easy-to-remove battery, carry-friendly frame design, and high-grip tires, it’s a dependable e-bike for riders who want to cover more ground without complicating the ride.
- Frame
- High-performance hydroformed alloy, internal cable routing, external battery mount
- Fork
- SR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 63 mm travel
- Wheels
- Hub front
- Shimano Tourney HB-QC300, centerlock
- Hub rear
- Shimano QC400, 32-hole, centerlock, 135x5 mm
- Rim
- Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
- Spokes
- 14 g stainless steel, black
- Tyre
- Schwalbe G-One Allround, reflective strip, wire bead, puncture protection, 65-584
- E-system
- Charger
- Bosch standard 2A, 230V, smart system
- Motor
- Bosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h)
- Drivetrain
- Shifter
- Shimano U4000, 9-speed
- Rear derailleur
- Shimano CUES U4000
- *Crank
- Size: S, M
- ProWheel alloy, 165mm length
- Size: L
- ProWheel alloy, 170 mm length
- Chainring
- Alloy, with 40T narrow-wide steel ring, alloy guard
- Cassette
- Shimano LINKGLIDE LG300, 11-46, 9-speed
- Chain
- Shimano LG500, 9/10/11-speed
- Pedal
- VP-536 nylon platform
- Components
- Saddle
- Selle Royal Vivo Moderate Ergo
- Seatpost
- Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
- Handlebar
- Ergotec Ergo Series XXL, 31.8 mm, 30 mm rise, 16 degree sweep
- Grips
- Bontrager XR Endurance Comp, lock-on
- *Stem
- Size: S, M, L
- Aluminum, adjustable, 31.8mm
- Size: M
- adjustable aluminium, 31.8 mm, 90 mm length,
- Size: L
- Alloy adjustable stem, 110 mm length
- Head set
- FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
- Brake
- Hydraulic 4-piston brake Magura Louise Elite Leisure
- Brake rotor
- Magura MDR-S, CentreLock, 180 mm
- Accessories
- *Light
- Size: S, M, L
- Herrmans H-Black MR5-E, 140 Lumen, 40 Lux, LED, headlight
- Size: S, M, L
- Spanninga Pimento XER
- Kickstand
- Pletscher Comp Flex 18
- Cargo rack
- MIK-compatible alloy rear rack, maximum load 25 kg
- Mudguard
- SKS plastic, rear
- Weight
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).
|
|
|
 |
|
 |
|
|
|
