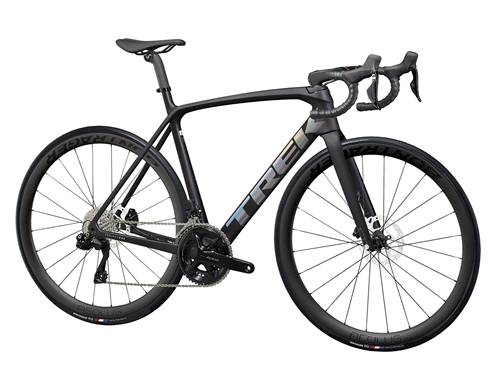

You love to fly up climbs, ride off the front and win every sprint. You want the lightest, fastest road bike we make, plus the performance advantage of Shimano’s new 105 Di2 drivetrain.
- Frame Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
- Fork Emonda SLR full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru-axle
- Frame fit H1.5 Race
- Wheels
- expand_less
- Wheel front Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100x12 mm thru axle
- Wheel rear Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, Shimano 11/12-speed freehub, 142x12 mm thru axle
- Skewer front Bontrager Switch thru axle, removable lever
- Skewer rear Bontrager Switch thru-axle, removable lever
- Tyre Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
- Max tyre size 28c
- Drivetrain
- expand_less
- Shifter Shimano 105 R7170, 12-speed
- Front derailleur Shimano 105 R7150, braze-on, down swing
- Rear derailleur Shimano R7150
- *Crank Size: 47
- Shimano 105 R7100, 50/34, 165 mm length
- Size: 50, 52
- Shimano 105 R7100, 50/34, 170 mm length
- Size: 54, 56, 58
- Shimano 105 R7100, 50/34, 172.5 mm length
- Size: 60, 62
- Shimano 105 R7100, 50/34, 175 mm length
- Bottom bracket Praxis, T47 threaded, internal bearing
- Cassette Shimano 105 7100, 11-34, 12-speed
- Chain Shimano SLX M7100, 12-speed
- Max. chainring size 1x: 50T, 2x: 53/39
- Components
- expand_less
- *Saddle Size: 47, 50, 52
- Bontrager Aeolus P2 Elite, 155 mm width
- Size: 54, 56, 58, 60, 62
- Bontrager Aeolus Elite, austenite rails, 145 mm width
- *Seatpost Size: 47, 50, 52, 54
- Bontrager carbon seat mast cap, 20 mm offset, short length
- Size: 56, 58, 60, 62
- Bontrager carbon seat mast cap, 20 mm offset, tall length
- *Integrated Bar Stem Size: 47, 50
- Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 38 cm width, 80 mm stem length
- Size: 52
- Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 40 cm width, 90 mm stem length
- Size: 54
- Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width, 90 mm stem length
- Size: 56
- Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width, 100 mm stem length
- Size: 58
- Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width, 110 mm stem length
- Size: 60, 62
- Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 44 cm width, 110 mm stem length
- Handlebar tape Bontrager Supertack Perf tape
- Brake rotor Shimano SM-RT70, CenterLock, 160 mm
- Rotor size Max brake rotor sizes: 160 mm front and rear
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Trek’s fastest climbing bike is aero, weighs in at less than 700 g, and rides like a dream
- The Wireless 105 Di2 delivers ever faster, smoother and more responsive shifts than ever
- 800 Series OCLV Carbon is the lightest laminate we’ve ever made
- Aerodynamic tube shaping makes this our fastest Émonda SLR platform ever – on flats and climbs alike
- The Aeolus Pro 37 wheels are designed for climbing, and were developed alongside Émonda
|
|
|
|
|
|
|
|
|
