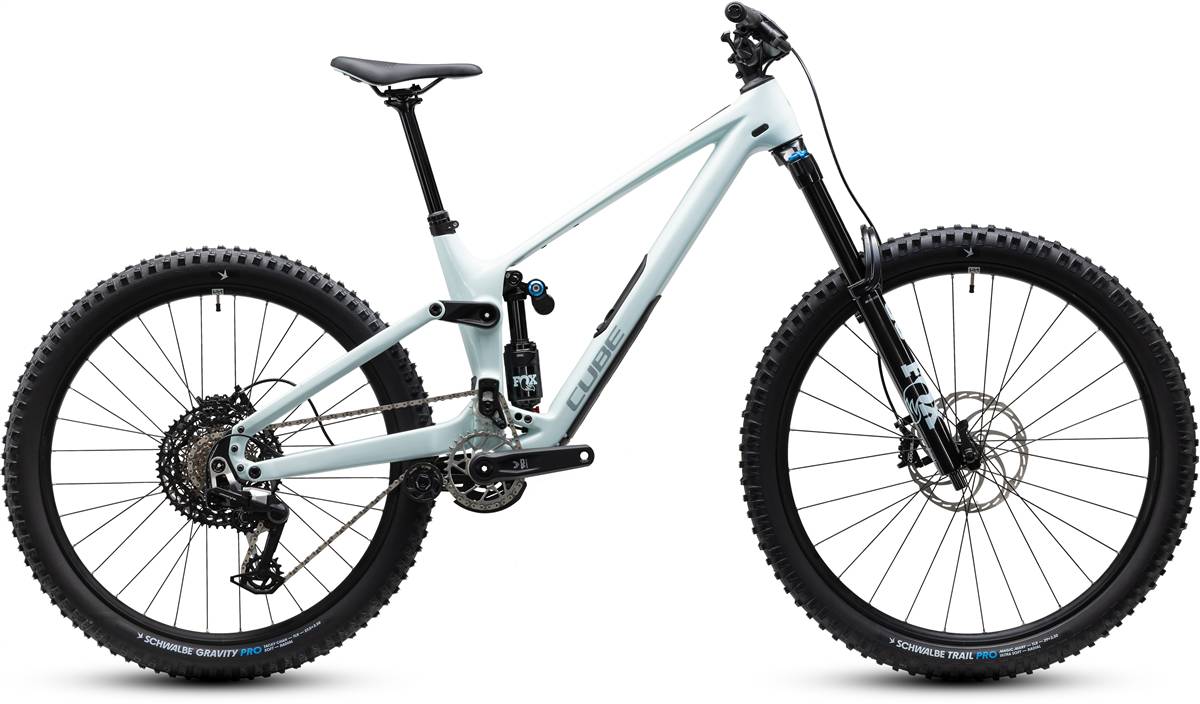

Big day out in the mountains? The Fritzz C:62 TM has got it covered. A mullet set-up running 2.5in Schwalbe Magic Mary and Tacky Chan tyres on Newmen Performance 30 wheels is held in check by powerful Magura Louise hydraulic disc brakes, whilst your power is delivered to the trail via Sram's Transmission 90 1x12 gears. Keeping the rubber side down and rolling is a Fox 38 Float Performance fork, paired with a Float X2 Performance shock. With a high pivot, lots of user adjustability and a frame built around the needs of gravity-fuelled riding, it's your ticket to miles of bike park smiles.
- Frame: C:62 Monocoque Advanced Twin Mold Technology, ISCG 05, UDH, Air/Coil Shock Mount Flip-Chip, High Main Pivot with Idler Pulley

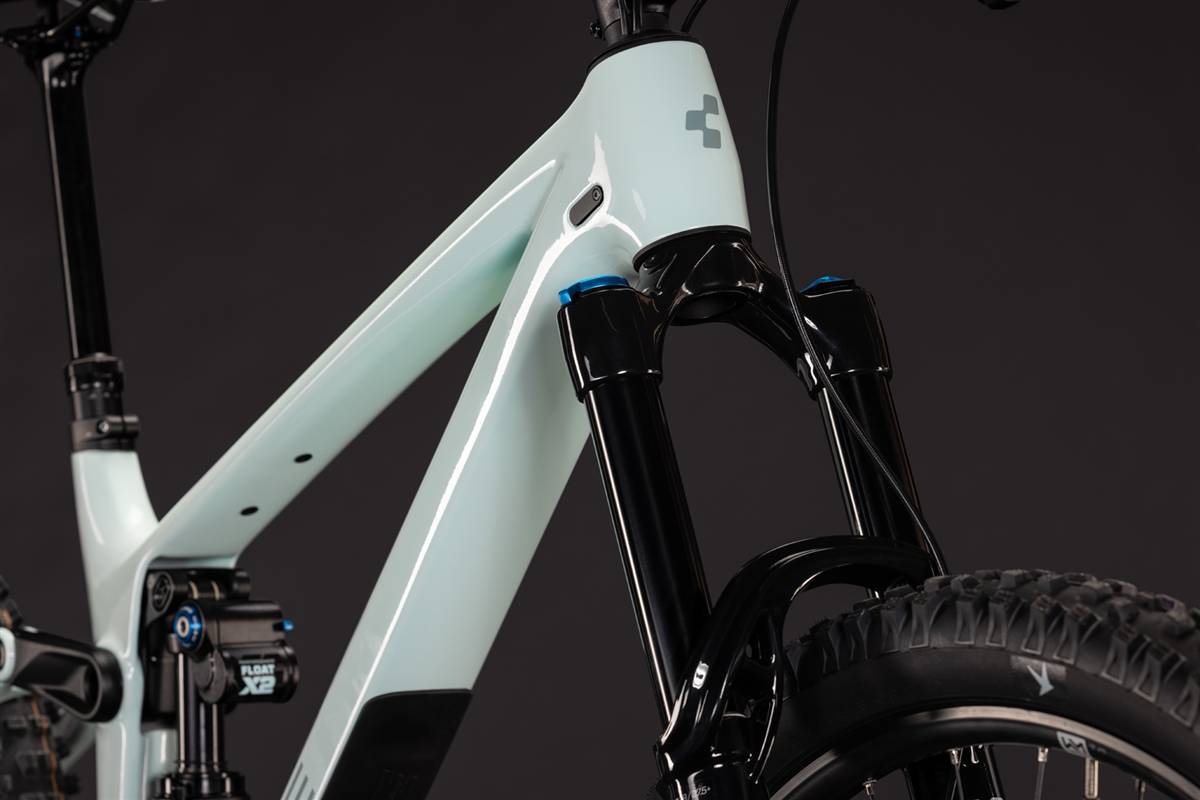

Fork: Fox 38 Float Performance GRIP, Tapered, 15x110mm, 170mm

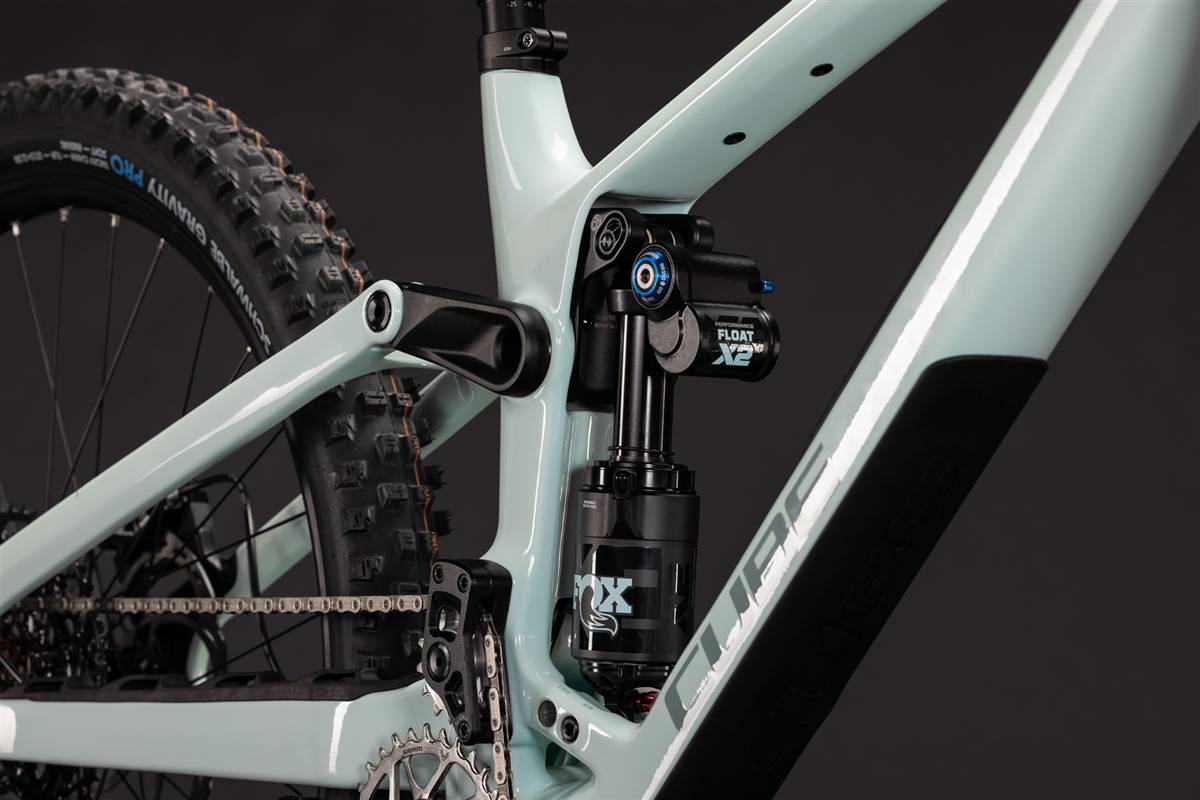

Frame shock: Fox Float X2 Performance, 230x65mm, Adjustable HSC/LSC/LSR w/ 2-Pos. Lever
Shock hardware: Top/Bottom: 30x8mm
Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2"" (ZS 56mm), Bottom Zero-Stack 1 1/2"" (ZS 56mm), Fiber Inserts for Angle Adjustment
Stem: Newmen Evolution 318.4, 31.8mm
Handlebar: Newmen Beskar 318.40, 800mm
Grips: ACID Endure
Rear Derailleur: Sram Eagle 90 Transmission, 12-Speed
Chain Guide: MRP MXg SL Custom
Shifters: Sram Eagle 90 Transmission
Brakes: Magura Louise, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Bottom Bracket: Sram DUB MTB Wide, 73mm BSA

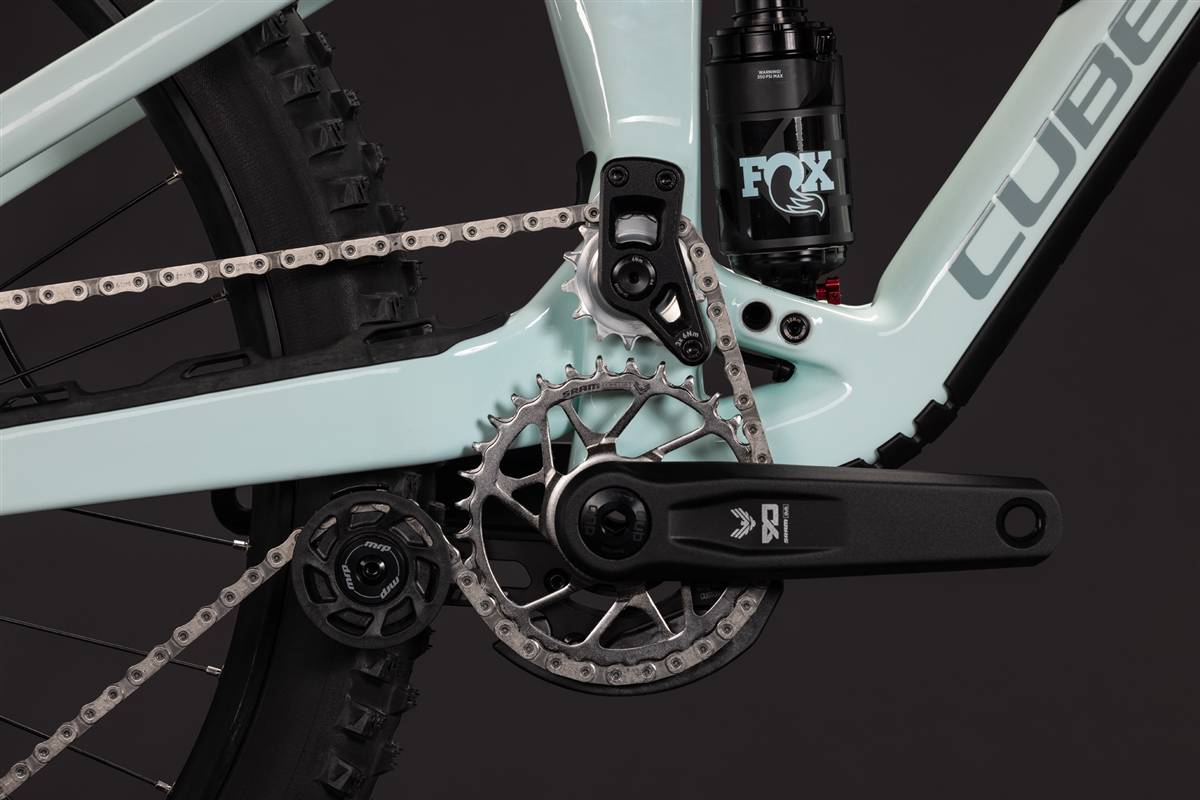

Crankset: Sram Eagle 90 Transmission DUB, 32T
Cassette: Sram XS-1270, 10-52T
Chain: Sram GX Eagle Transmission
Wheelset: Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Tires Front: Schwalbe Magic Mary Trail Pro, Ultrasoft, Kevlar, 2.5
Tires Rear: Schwalbe Tacky Chan Gravity Pro, Addix Soft, Kevlar, 2.5
Saddle: ACID Venec Lite
Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, Travel Adjust, 31.6mm
Seatpost clamp: CUBE Screwlock, 34.9mm
Weight: 17,2 kg
System Weight max.: 115 kg
Driver max. Weight: 100 kg
|
|
|
 |
|
 |
|
|
|
