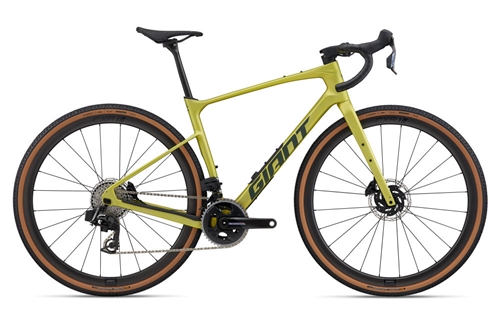

Now lighter, smoother and more adaptable to variable conditions and terrain, this reengineered composite gravel bike combines ultra-efficient performance with next-level handling and control.
- SizesXS, S, M, M/L, L, XL
- ColoursCyber Lime
- FrameAdvanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
- ForkAdvanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
- HandlebarGiant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
- StemGiant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
- SeatpostGiant D-Fuse SLR, composite, -5/+15mm offset
- SaddleGiant Grit SL
- Pedalsno pedal [GA, Pan-Eu], platform pedal [GU, GV, GJ]
- ShiftersSRAM Force AXS E1, 2x12
- Front DerailleurSRAM Force AXS D2
- Rear DerailleurSRAM Force AXS E1
- BrakesSRAM Force AXS E1 hydraulic, SRAM CenterLine rotors [F]160mm, [R]160mm
- Brake LeversSRAM Force AXS E1 hydraulic
- CassetteSRAM Force E1, 12-speed, 10x36
- ChainSRAM Force E1
- CranksetSRAM Force D2 DUB, 30/43 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- Bottom BracketSRAM DUB, press fit
- RimsGiant CXR 1 WheelSystem, [F] 35mm, [R] 35mm
- Hubs[F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
- SpokesSapim CX-Ray
- TyresCADEX GX, 700x40c, tubeless
- ExtrasTubeless prepared, in-frame storage bag
- Max Tire Clearance53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position with 1x drivetrains. Max tyre size with a 2x drivetrain is 45mm in the long position.tire size in "short" flip chip position, in-frame storage bag
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- The new Revolt Advanced Pro is built on an Advanced-grade composite frame and Advanced SL fork with new cable integration and an internal storage system to carry tools, snacks and other essentials. Designed with input from Giants gravel racing pros, the geometry retains its emphasis on all-rounder speed to help riders conquer all types of gravel and dirt with smooth efficiency. A flip chip on the all-new, full composite rear dropout lets you adjust the wheelbase and tire clearance up to 53mm, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a standard 30.9mm round seatpost or dropper post.
|
|
|
|
|
|
|
|
|
