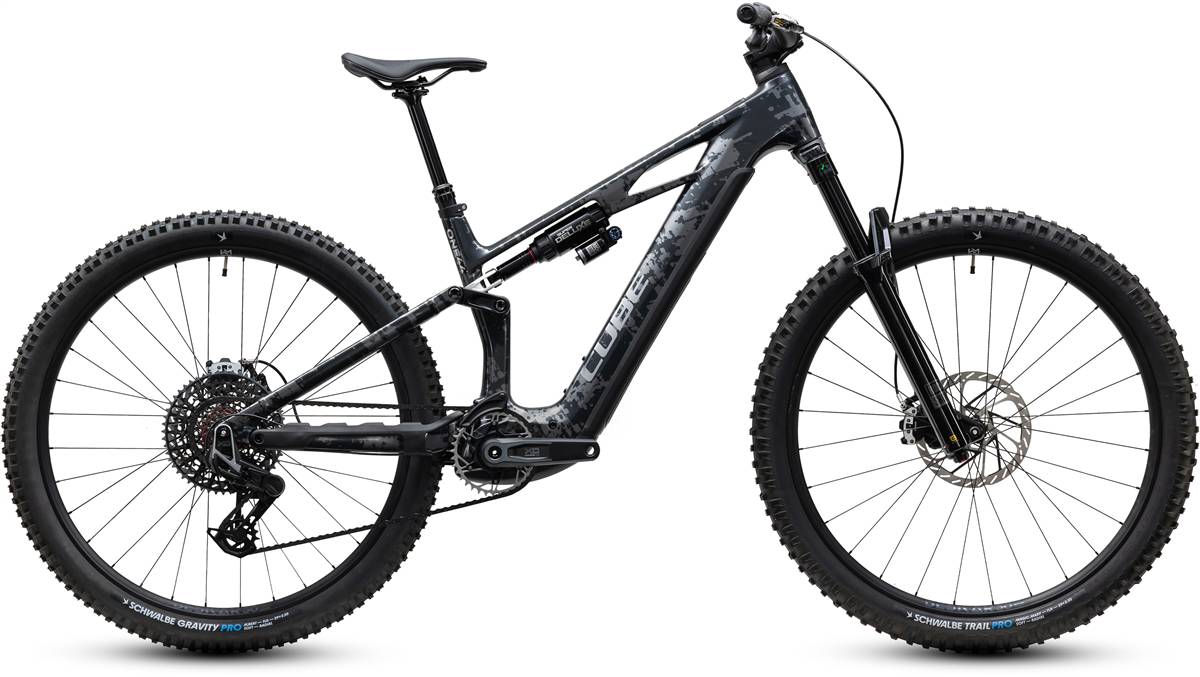

How would you build the ultimate trail bike? This is ours: the Stereo Hybrid ONE44 HPC Super TM. We began by plugging a RockShox Zeb Ultimate 150mm fork into the front of our High Performance Carbon frame, and added a Super Deluxe Ultimate shock for 140mm travel at the rear. Together, they keep the 2.5in Schwalbe Magic Mary- and Albert-shod Newmen Beskar 30 TRQ wheelset firmly planted to the trail. Which is handy, because your pedal input transferred with Sram's X0 Eagle Transmission 1x12 gears is supplemented by smooth, controllable power from Avinox's M2S drive with 800Wh removable battery and DP100 controller. A remote dropper post and the progressive power of Sram's Maven Ultimate hydraulic disc brakes complete the build. It's ready for any trail, anywhere...
- Frame: C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH, Full Integrated Battery, Advanced Internal Cable Routing
Fork: RockShox Zeb Ultimate Charger 3.2 RC2 Air, Tapered, 15x110mm, 150mm

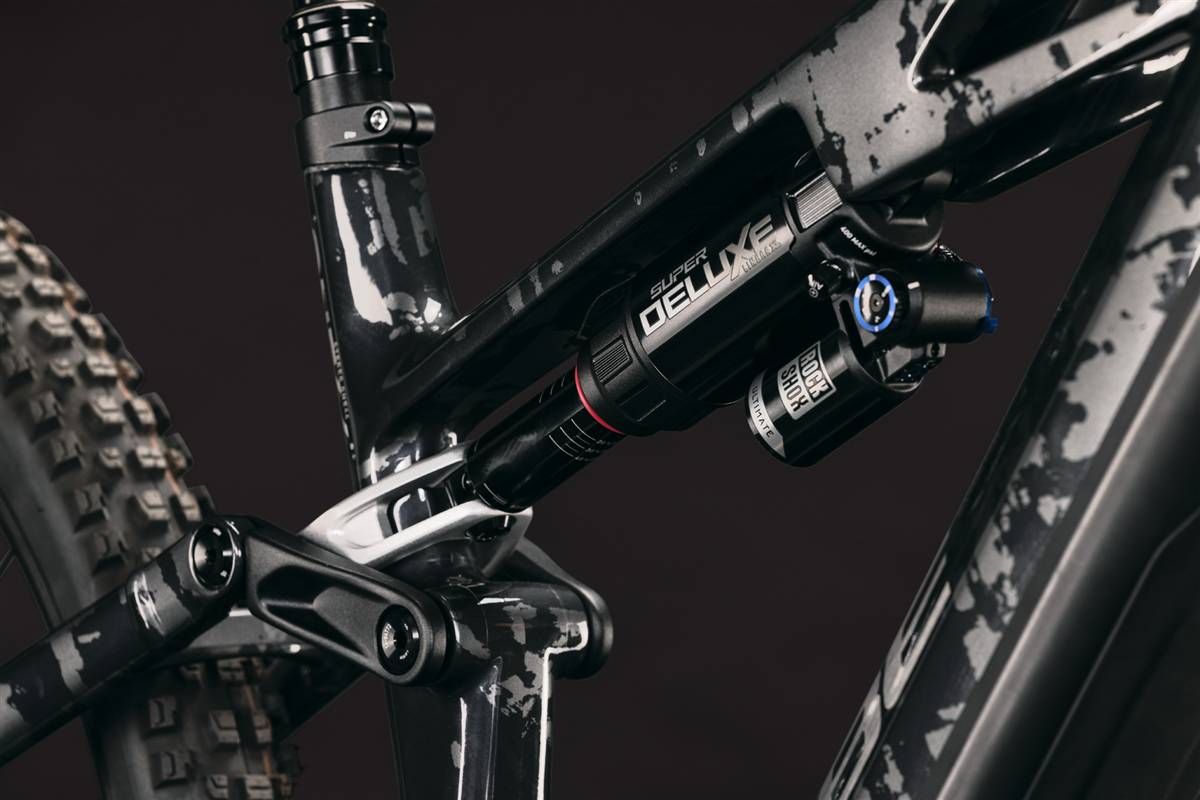

Frame shock: RockShox Super Deluxe Ultimate, 230x60 (27.5: 210x55mm), Rebound LSC/HSC Adjust, 2-Position Lever
Shock hardware: Front: 30x8mm, Rear: DU-Bushing 12.7mm
Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2"" (ZS 56mm), Bottom Zero-Stack 1 1/2"" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Stem: CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar: Race Face ERA 35
Grips: ACID Endure
Rear Derailleur: Sram X0 Eagle AXS Transmission, 12-Speed
Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Shifters: Sram AXS Pod Ultimate Controller
Brakes: Sram Maven Ultimate, Hydr. Disc Brake (200/200)

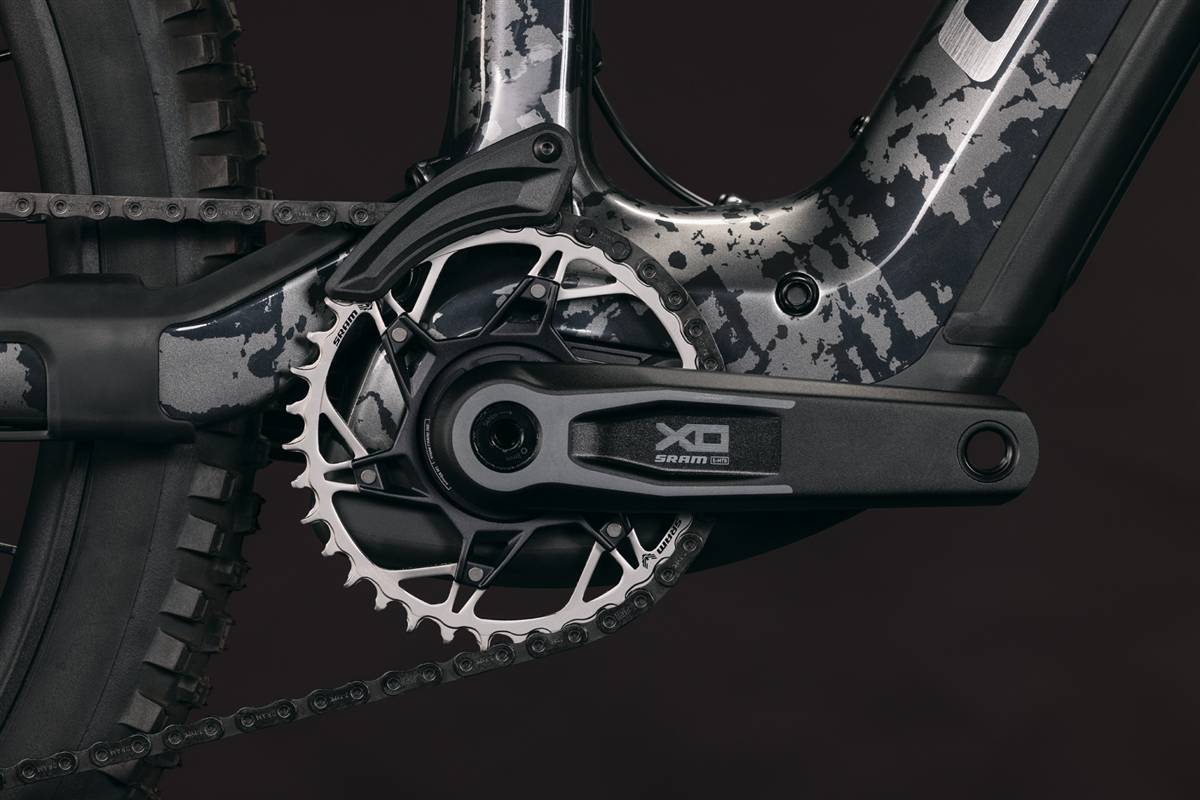

Crankset: Sram X0 Eagle E-MTB Crank, 36T
Cassette: Sram XS-1295, 10-52T
Chain: Sram X0 Eagle Transmission
Wheelset: Newmen Beskar 30 TRQ base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires Front: Schwalbe Magic Mary Trail Pro, Addix Soft, Kevlar, 2.5
Tires Rear: Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5
Pedals: ACID PP Rookie large
Saddle: ACID Venec EMTB Trail 140
Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost clamp: CUBE Semi-Integrated
Motor: Avinox M2S max. 130Nm (Boost 150 Nm)
Battery: Avinox 800Wh removable
Charger: Avinox 12A
Remote: Avinox BC100 left+right
Display: Avinox DP100 Curved
Weight: 24,4 kg
System Weight max.: 150 kg
Driver max. Weight: 125 kg
|
|
|
 |
|
 |
|
|
|
