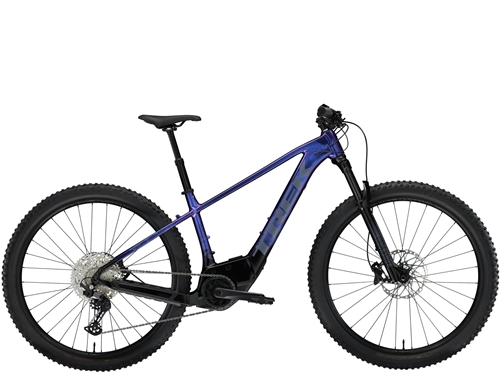

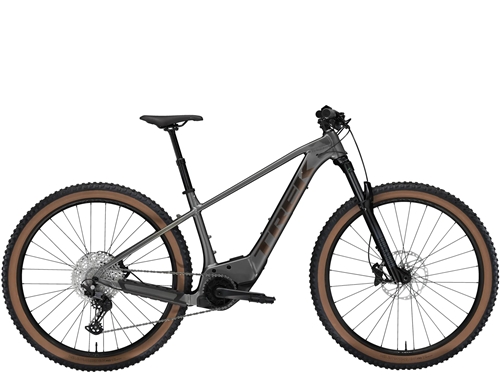

The Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding further, and doesn't break the bank, and a 120 mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tyres and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.
- *Frame Size: XS
- Alpha Platinum Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
- Size: S , M , L , XL
- Alpha Platinum Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
- *Fork Size: XS
- SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 100 mm travel
- Size: S , M , L , XL
- RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 120 mm travel
- Wheels
- Hub front Bontrager alloy, sealed bearing, alloy axle, CenterLock, Boost110, 15 mm thru axle
- Skewer rear Bontrager Switch thru-axle, removable lever
- *Rim Size: XS , S , M , L , XL
- Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
- Size: XS , S , M , L , XL
- Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
- *Tyre Size: XS , S
- Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60"
- Size: M , L , XL
- Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60"
- Rim strip Bontrager TLR
- Drivetrain
- Shifter Shimano Deore M6100, 12-speed
- Rear derailleur Shimano Deore M6100, long cage
- Crank FSA CK-220, 165 mm length
- Chainring FSA, 32T, steel
- Cassette Shimano Deore M6100, 10-51, 12-speed
- Chain Shimano Deore M6100, 12-speed
- Pedal VP-536 nylon platform
- Components
- Saddle Bontrager Arvada, steel rails, 138 mm width
- *Seatpost Size: XS , S
- TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
- Size: M , L , XL
- TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
- *Handlebar Size: XS , S
- Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
- Size: M , L , XL
- Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
- Grips Bontrager XR Trail Comp, nylon lock-on
- *Stem Size: XS , S
- Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length
- Size: M , L
- Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
- Size: XL
- Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
- Head set Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom
- Brake Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
- *Brake rotor Size: XS , S , M , L , XL
- Shimano RT64, CentreLock, 203 mm
- Size: XS , S , M , L , XL
- Shimano RT64, CentreLock, 203mm
- Accessories
- Battery Bosch CompactTube 400 Wh
- Charger Bosch standard 2A, 230V, smart system
- Motor Bosch Active Line Plus
- Computer Bosch Purion 200
- Weight
- Weight M - 21.30 kg / 46.96 lbs (with TLR sealant, no tubes)
- Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (30
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- The Marlin+ is the go-to for riders looking to dip their toes into the electric mountain bike world. Its trail-savvy frame gives you confident control, and a Bosch Active Line Plus motor offers enough power to take the burn out of long climbs.
|
|
|
|
|
|
|
|
|
