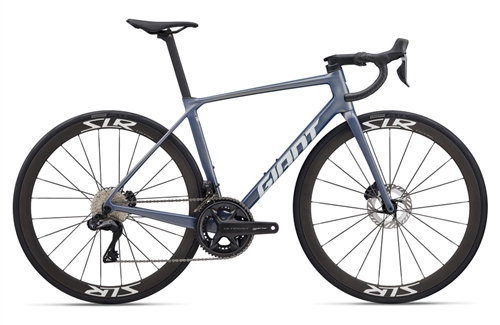

This versatile road racer combines race-winning stiffness-to-weight with aerodynamic tube shaping and system integration. From the road-smoothing Variant seatpost to the composite WheelSystem, every piece is optimized as part of the system. The new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate new internal cable routing for easy setup and adjustment, while integrated disc brakes and generous clearance for tires up to 33mm make it adaptable to all road conditions.
- SizesXS, S, M, M/L, L, XL
- ColoursMidnight Moon, Carbon
- FrameAdvanced-grade Composite, 12x142mm thru-axle, disc
- ForkAdvanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
- ShockN/A
- HandlebarGiant Contact SLR XS:420/370mm, S:420/370mm, M:440/390mm, M/L:440/390mm, L:440/390mm, XL:440/390mm
- StemGiant Contact SL AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
- SeatpostGiant Variant, composite, -5/+15mm offset
- SaddleGiant Fleet SL
- ShiftersShimano Ultegra Di2
- Front DerailleurShimano Ultegra Di2 FD-R8150
- Rear DerailleurShimano Ultegra Di2 RD-R8150
- BrakesShimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]140mm
- Brake LeversShimano Ultegra Di2
- CassetteShimano Ultegra, 12-speed, 11x34
- ChainShimano CN-M8100
- CranksetShimano Ultegra, 36/52 with Giant Power Pro power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
- Bottom BracketShimano, press fit
- RimsGiant SLR 0 40 WheelSystem, [F]40mm, [R]40mm
- Hubs[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
- SpokesGiant Aero Carbon Spoke
- TyresCADEX Road Race GC, tubeless, 700x30mm, folding
- Extrascomputer mount, tubeless prepared, 33mm max tire size
- Max Tire Clearance33mm
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Class-leading efficiency
- With an outstanding stiffness-to-weight ratio and updated aero tube shaping, this frameset is engineered to give road racers and riders superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.
- Advanced aerodynamics
- This is where the TCRs most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles. The result is a TCR thats faster than ever in sprints and solo situations.
- Total control
- Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up 32mm.
|
|
|
|
|
|
|
|
|
