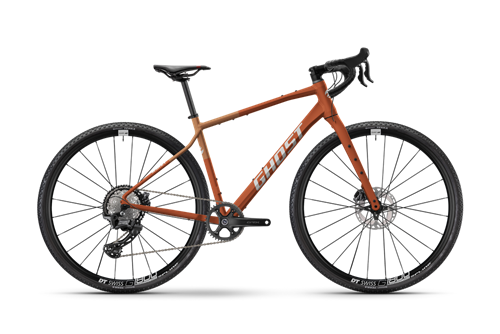

Welcome to the next level of gravel biking: the GHOST Asket Advanced, with a sturdy aluminium frame, premium features and a weight-saving carbon fork. The high-quality disc brakes and Shimano gears ensure plenty of fun for sporty riders. If you plan to use your gravel bike primarily for micro-adventures and bikepacking, you'll be pleased to know that it comes with pannier mounts. The mounting points for stands and mudguards are an additional bonus for everyday use. The ideal gravel bike for anyone looking for a good balance between features and price.
- Brake system
- Brake Front Description:
- Shimano, Hydraulic Disc brake, GRX BR-RX820, 2 pistons, resin pad, 160 mm
- Brake Front Mount:
- Flat Mount
- Brake Rear Description:
- Shimano, Hydraulic Disc brake, GRX BR-RX820, 2 pistons, resin pad, 160 mm
- Brake Rear Mount:
- Flat Mount
- Brake Lever Description:
- Shimano, GRX BL-RX820-L
- Brake Rotor Description:
- Shimano, RT-CL800 160 mm, Centerlock, ICE Technologies
- Drivetrain
- Bottom Bracket Description:
- Shimano, BSA, SM-BBR60, 68/70 mm, HOLLOWTECH II
- Cassette Description:
- Shimano, Deore XT CS-M8100-12, MICRO SPLINE
- Cassette Teeth:
- 10-51T
- Chain Description:
- Shimano, Deore XT CN-M8100 12s
- Crank Arm length:
- 172.5
- Crankset Description:
- Shimano, GRX FC-RX820-1, HOLLOWTECH 2
- Crankset Teeth:
- 40T
- Crankset Type:
- single
- Derailleur Hanger Description:
- Ghost, FRHG0065 Hanger Set
- Derailleur Rear Description:
- Shimano, GRX RD-RX822-SGS 12s, Shadow+
- Gear Description:
- Shimano, Derailleur
- Number Of Gears:
- 12
- Pedal Description:
- XLC, Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Pedal Inclusive:
- Yes
- Shifter Right Description:
- Shimano, Shift-brake lever, GRX ST-RX820-R, Dual Control Lever
- Frame and more
- Framesize:
- 49 cm
- Framesize Convection:
- M
- Max loadable weight (KG):
- 120 kg
- Front Fork Description:
- Ghost, Carbon
- Front Fork Type:
- Non Suspension
- Frame Description:
- HIGH, Aluminium, Uni
- Type kickstand mount:
- KSA40
- Handlebar and Saddle
- Handgrip Description:
- XLC, Elastomer Tape Gray, 200x3 cm w/VLP-137
- Handlebar Description:
- XLC, Drop bar, Gravel Bar JD-RA128A, Dia. 31.8 mm
- Handlebar Diameter:
- 31.8 mm
- Handlebar Width:
- 440 mm
- Headset Description:
- Acros, Semi-integrated, ZS44/ZS56
- Saddle Description:
- XLC, Sport SA-S10 143 mm
- Seatpost Description:
- XLC, Non Suspension, SP-R30, Dia. 27.2 mm, L: 350 mm
- Stem Description:
- XLC, ST-M34, Dia. 31.8 mm, L: 60 mm, +/-7°, A-Head
- Stem Length:
- 60 mm
- Wheels and wheel components
- Tyre Description:
- Continental, Terra Adventure Trail Grip, 45-622
- Tyre Rear Description:
- Continental, Terra Adventure Trail Grip
- Wheelset Description:
- DT Swiss, G 1800 Spline, 25 mm, 12x100 mm, CL
- Wheelset Rear Description:
- DT Swiss, G 1800 Spline, 25 mm, 12x142 mm, CL, MS
- Wheelsize Description:
- 28, 28
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Alloy Frame
- Carbon Fork
- Shimano GRX BR-RX820 Hydraulic Brakes
- Shimano GRX ST-RX820 Shift Brake Levers
- Shimano GRX RD-RX822 Rear Derailleur Bike Geometry
- Bottom bracket drop [mm]:
- 66.5 mm
- Chain stay length [mm]:
- 440 mm
- Head tube angle:
- 70.1 degrees
- Head tube length [mm]:
- 160 mm
- Reach [mm]:
- 407 mm
- Stack [mm]:
- 612 mm
- Stand over height [mm]:
- 750 mm
- Seat tube angle:
- 73.7 degrees
- Seat tube length [mm]:
- 485 mm
- Top tube length [mm]:
- 586 mm
- Wheelbase [mm]:
- 1098 mm
|
|
|
|
|
|
|
|
|
