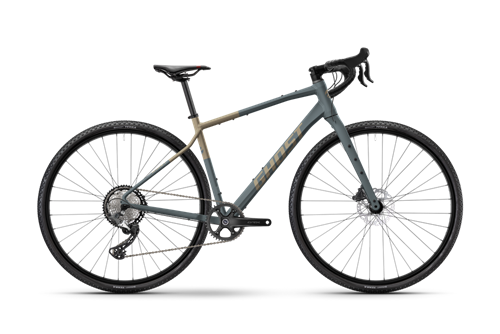

Our entry-level gravel bike: with its sturdy aluminium frame, this is the perfect starting point for anyone looking to venture onto gravel roads and forest trails. If you have even bigger ambitions, you will be impressed with the bikepacking mounts, which make attaching panniers a breeze. And if you want to benefit from the power transfer and comfort of a gravel bike during everyday riding, mudguards and stands can be easily mounted in just a few steps.
- Brake system
- Brake Front Description:
- Shimano, Hydraulic Disc brake, GRX BR-RX400, 2 pistons, resin pad, 160 mm
- Brake Front Mount:
- Flat Mount
- Brake Rear Description:
- Shimano, Hydraulic Disc brake, GRX BR-RX400, 2 pistons, resin pad, 160 mm
- Brake Rear Mount:
- Flat Mount
- Brake Lever Description:
- Shimano, GRX ST-RX600 Shift-Brake-Lever
- Brake Rotor Description:
- Shimano, SM-RT64 160 mm, Centerlock
- Drivetrain
- Bottom Bracket Description:
- Shimano, BSA, Tiagra BB-RS501 68/70 mm
- Cassette Description:
- Shimano, GRX CS-HG700-11, HG
- Cassette Teeth:
- 11-34T
- Chain Description:
- Shimano, GRX CN-HG601 11s, SIL-TECH
- Crank Arm length:
- 172.5
- Crankset Description:
- Shimano, GRX FC-RX600-1, 2-Piece Crankset
- Crankset Teeth:
- 40T
- Crankset Type:
- single
- Derailleur Hanger Description:
- Ghost, FRHG0065 Hanger Set
- Derailleur Rear Description:
- Shimano, GRX RD-RX810 11s, Shadow+
- Gear Description:
- Shimano, Derailleur
- Number Of Gears:
- 11
- Pedal Description:
- XLC, Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Pedal Inclusive:
- Yes
- Shifter Right Description:
- Shimano, Shift-brake lever, GRX ST-RX600-R, Dual Control Lever
- Frame and more
- Framesize:
- 49 cm
- Framesize Convection:
- M
- Max loadable weight (KG):
- 120 kg
- Front Fork Description:
- Ghost, Carbon
- Front Fork Type:
- Non Suspension
- Frame Description:
- HIGH, Aluminium, Uni
- Type kickstand mount:
- KSA40
- Handlebar and Saddle
- Handgrip Description:
- XLC, Elastomer Tape Gray, 200x3 cm w/VLP-137
- Handlebar Description:
- XLC, Drop bar, Gravel Bar JD-RA128A, Dia. 31.8 mm
- Handlebar Diameter:
- 31.8 mm
- Handlebar Width:
- 440 mm
- Headset Description:
- Acros, Semi-integrated, ZS44/ZS56
- Saddle Description:
- XLC, Sport SA-S10 143 mm
- Seatpost Description:
- XLC, Non Suspension, SP-R30, Dia. 27.2 mm, L: 350 mm
- Stem Description:
- XLC, ST-M34, Dia. 31.8 mm, L: 60 mm, +/-7°, A-Head
- Stem Length:
- 60 mm
- Wheels and wheel components
- Hub Front Description:
- XLC, HF-G12 12x100 mm, 32H, Centerlock
- Hub Rear Description:
- XLC, HR-G12 12x142 mm, 32H, Centerlock, HG
- Rim Description:
- XLC, WR-G29 SL Disc 25/622 32H 6,5 mm Valve
- Rim Rear Description:
- XLC, WR-G29 SL Disc 25/622 32H 6,5 mm Valve
- Spoke Description:
- DT Swiss, ELEMENTAL 2.0
- Tyre Description:
- Continental, Terra Adventure Trail Grip, 45-622
- Tyre Rear Description:
- Continental, Terra Adventure Trail Grip
- Wheelsize Description:
- 28, 28
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Alloy Frame
- Carbon Fork
- Shimano GRX BR-RX400 Hydraulic Brakes
- Shimano GRX ST-RX600 Shift Brake Levers
- Shimano GRX RD-RX810 Rear Derailleur
Bike Geometry- Bottom bracket drop [mm]:
- 66.5 mm
- Chain stay length [mm]:
- 440 mm
- Head tube angle:
- 70.1 degrees
- Head tube length [mm]:
- 160 mm
- Reach [mm]:
- 407 mm
- Stack [mm]:
- 612 mm
- Stand over height [mm]:
- 750 mm
- Seat tube angle:
- 73.7 degrees
- Seat tube length [mm]:
- 485 mm
- Top tube length [mm]:
- 586 mm
- Wheelbase [mm]:
- 1098 mm
|
|
|
|
|
|
|
|
|
