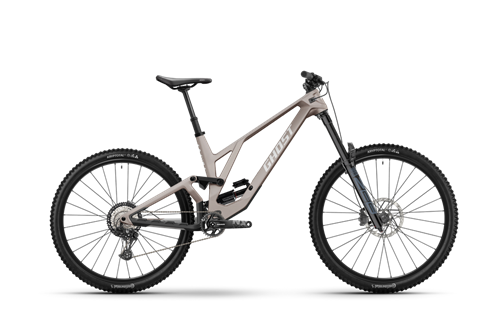

Elevate the game with the new POACHA. Featuring a category 5 tested Straight Line Design carbon frame, adjustable reach and geometry and 180mm of travel. Its built for the rough.
- Brake system
- Brake Front Description:
- Sram, Hydraulic Disc brake, DB Maven Bronze, 4 pistons, organic pad, 200 mm
- Brake Front Mount:
- Post Mount
- Brake Rear Description:
- Sram, Hydraulic Disc brake, DB Maven Bronze, 4 pistons, organic pad, 200 mm
- Brake Rear Mount:
- Post Mount
- Brake Lever Description:
- Sram, DB Maven Bronze-BL
- Brake Rotor Description:
- Sram, DB Rotor Centerline 200 mm, rounded, Centerlock
- Drivetrain
- Bottom Bracket Description:
- Sram, BSA, DUB BSA 73 MTB WIDE
- Cassette Description:
- Sram, XS-1270 Eagle T-Type, HG
- Cassette Teeth:
- 10-52T
- Chain Description:
- Sram, Eagle 70 T-Type 12s
- Crank Arm length:
- 165
- Crankset Description:
- Sram, FC Eagle 70 DUB T-Type Crankset w/ Guard, DM
- Crankset Teeth:
- 30T
- Crankset Type:
- single
- Derailleur Rear Description:
- Sram, Eagle 70 T-Type 12s
- Gear Description:
- Sram, Derailleur
- Number Of Gears:
- 12
- Pedal Inclusive:
- No
- Shifter Right Description:
- Sram, Triggershift, Eagle 70 T-Type Single Click Trigger
- Frame and more
- Framesize:
- 43 cm
- Framesize Convection:
- M
- Max loadable weight (KG):
- 120 kg
- Front Fork Description:
- Rockshox, ZEB Select Charger RC, Boost, DebonAir+, 180 mm
- Front Fork Type:
- Suspension
- Frame Description:
- HIGH, Carbon, Uni
- Shock Description:
- Rockshox, Vivid Select 250x70mm, Vivid Air, Standard
- Suspension Type:
- Fully
- Travel Front:
- 180 mm
- Travel Rear:
- 180 mm
- Handlebar and Saddle
- Handgrip Description:
- XLC, GR-S34 Gravity Grip
- Handlebar Description:
- XLC, Riser Bar, MTB Dia. 31.8 mm, Rise: 19 mm, backsweep 9°
- Handlebar Diameter:
- 31.8 mm
- Handlebar Material:
- Aluminium
- Handlebar Rise:
- 19
- Handlebar Width:
- 800 mm
- Headset Description:
- Acros, Semi-integrated, AMX-002/3 Mod56/66, reach adjustable +/-5 mm
- Saddle Description:
- Prologo, Proxim Nembo Steel rail 145 mm
- Seatpost Description:
- Tranz X, Dropperpost, MTB +RAD JD-YSI35, Dia. 34.9 mm, Travel: 180 mm
- Seatpost Material:
- Aluminium
- Seatpost Travel (mm):
- 180 mm
- Stem Description:
- PMG, Team All Mtn, Dia. 31.8 mm, L: 40 mm, A-Head
- Stem Length:
- 40 mm
- Wheels and wheel components
- Hub Front Description:
- Shimano, HB-TC500-15-B 15x110 mm, 32H, Centerlock
- Hub Rear Description:
- Shimano, FH-TC500-HM-B 12x148 mm, 32H, Centerlock, HG
- Rim Description:
- WTB, ST Tough TCS 2.0 29" Pinned 32H Vinyl
- Rim Rear Description:
- WTB, ST Tough TCS 2.0 27.5" Pinned 32H Vinyl
- Spoke Description:
- DT Swiss, FACTORY 2.0
- Tyre Description:
- Continental, Kryptotal-Fr Enduro Soft, foldable skin SL, TR, 60-622
- Tyre Rear Description:
- Continental, Kryptotal-Re Enduro Soft, foldable skin SL, TR
- Wheelsize Description:
- 29, 27.5
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Bike Geometry
- Bottom bracket drop [mm]:
- 7 mm
- Chain stay length [mm]:
- 439 mm
- Fork total length [mm]:
- 44 mm
- Head tube angle:
- 64 degrees
- Head tube length [mm]:
- 105 mm
- Reach [mm]:
- 471 mm
- Stack [mm]:
- 640 mm
- Stand over height [mm]:
- 741 mm
- Seat tube angle:
- 79 degrees
- Seat tube length [mm]:
- 430 mm
- Top tube length [mm]:
- 603 mm
- Wheelbase [mm]:
- 1256 mm
|
|
|
|
|
|
|
|
|
